FastS : RANS CRM

RANS flow around the CRM DPW5 configuration at Mach=0.85, Reynolds=5.e6 and 2.175° of angle of attack.

Mesh

Octree + full IBC. Snear = 0.001 at wing leading/trailing edges, 0.001 at wing root/tip, 0.002 on the wing and 0.004 on the fuselage.

Original Image Solution
Modified Image Mesh

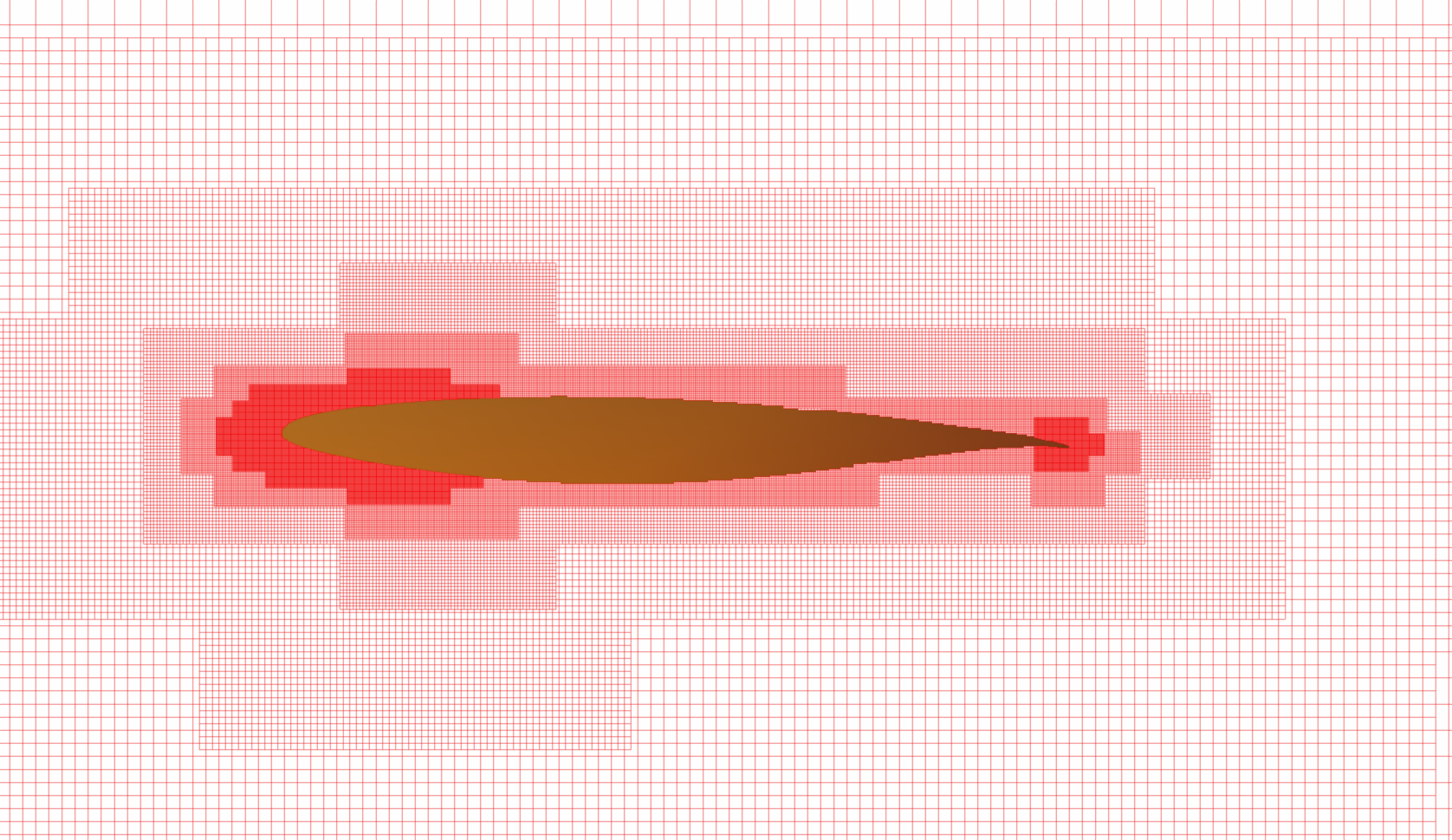

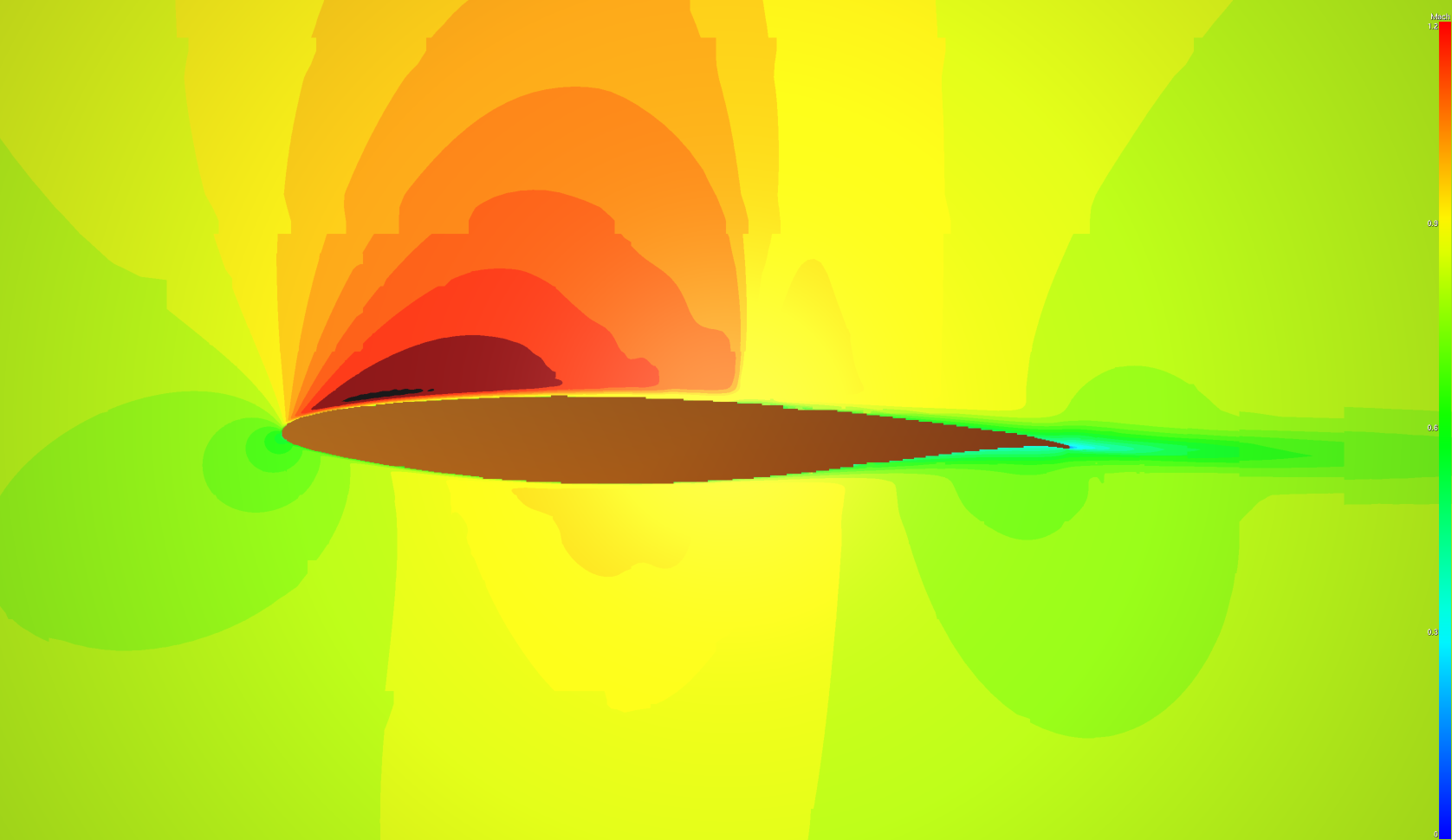

              Mesh 12766 blocks, 691M points. + Isocontours of Mach number at slice Y=10



Results

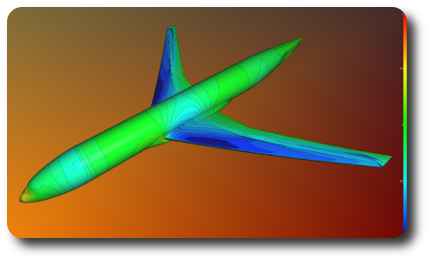

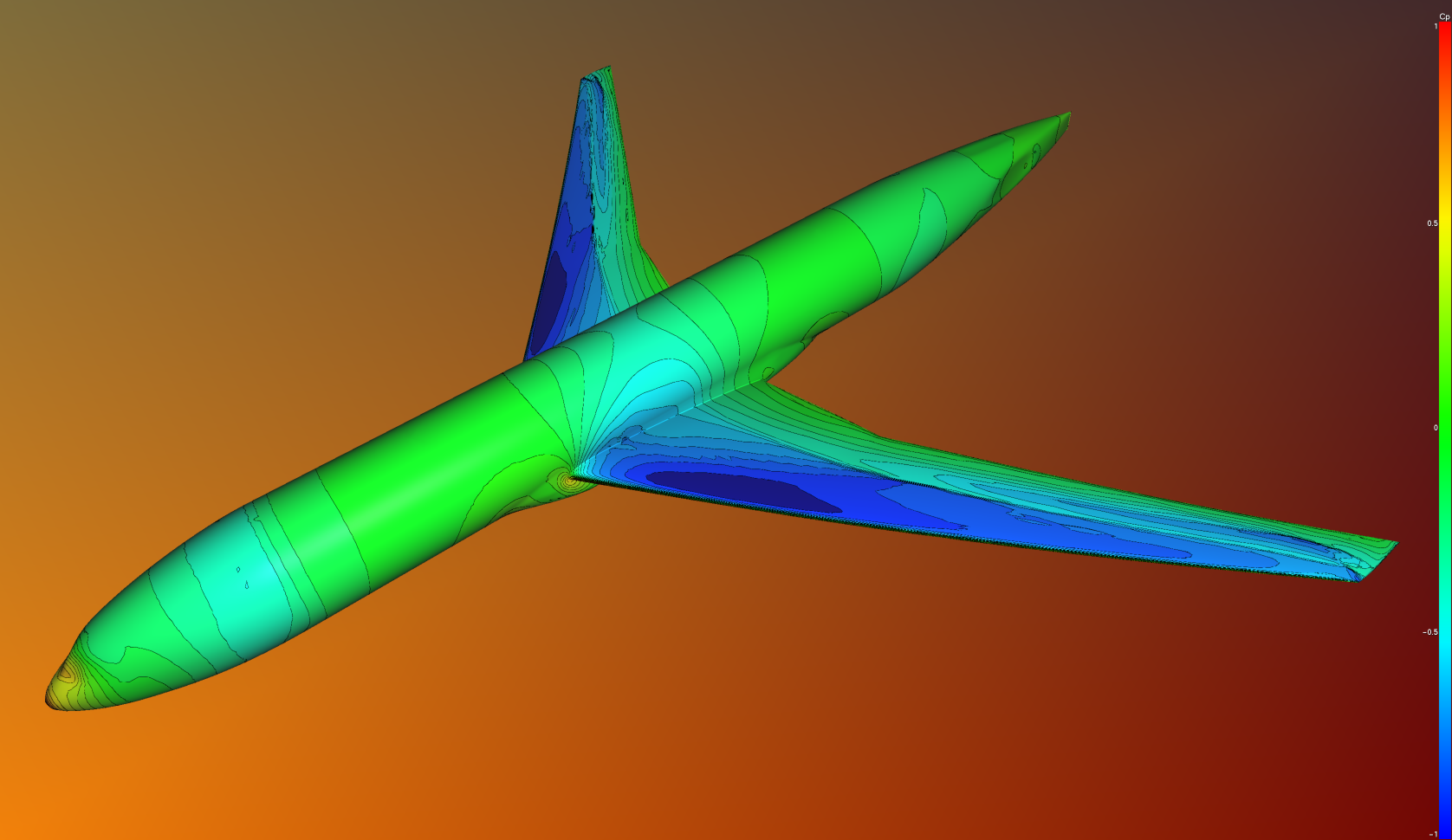

              Isocontours Cp at wall.

Comparison between multiblock structured and full IBM computations:

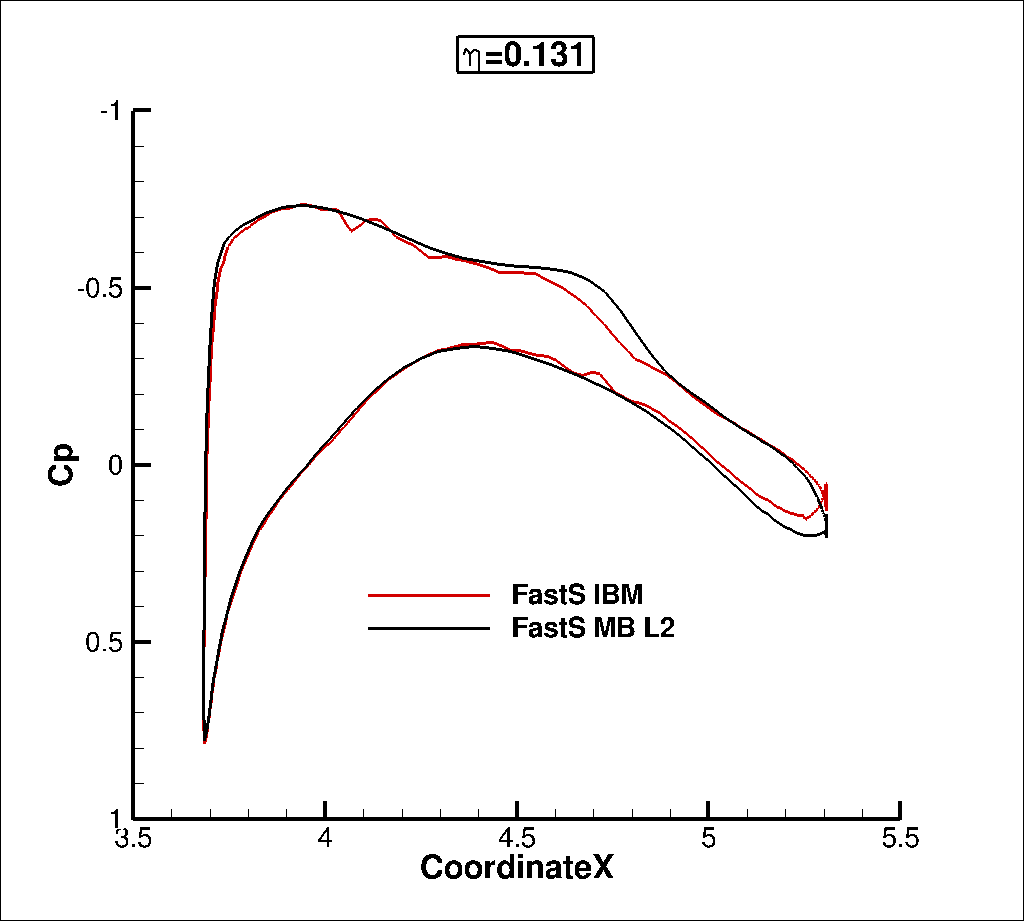

              Cp at 13% span.

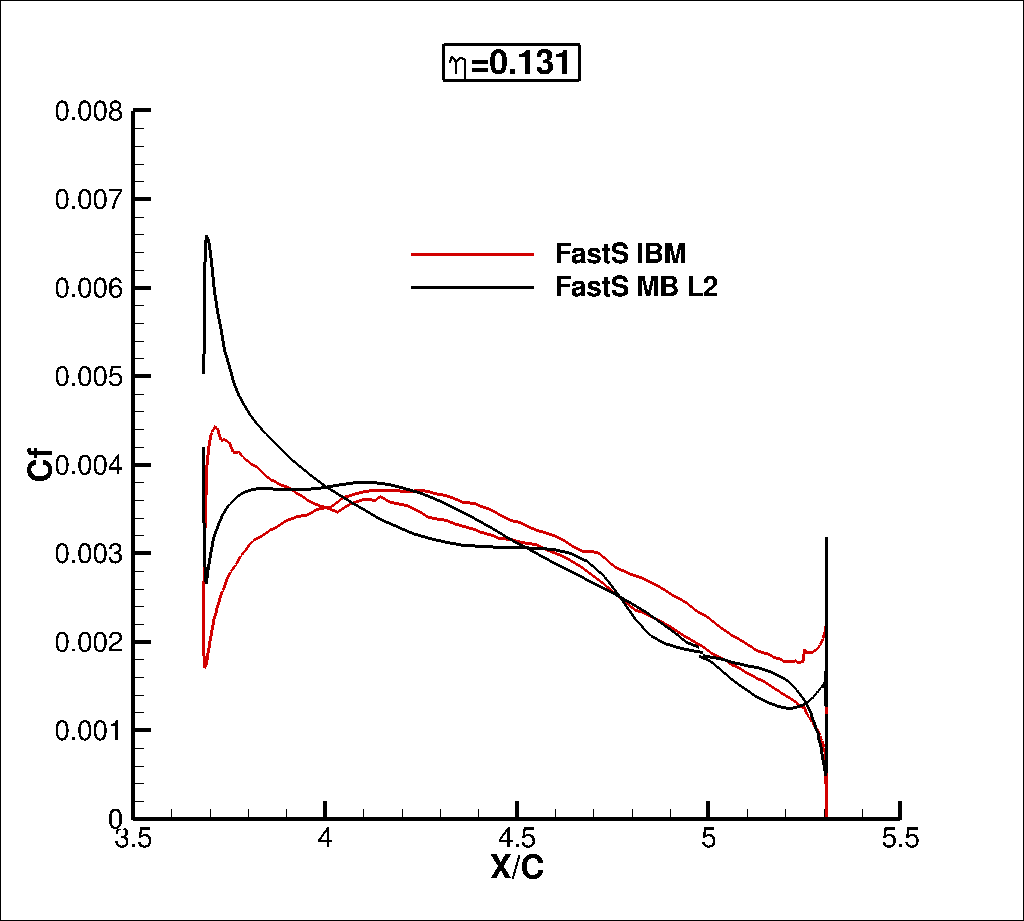

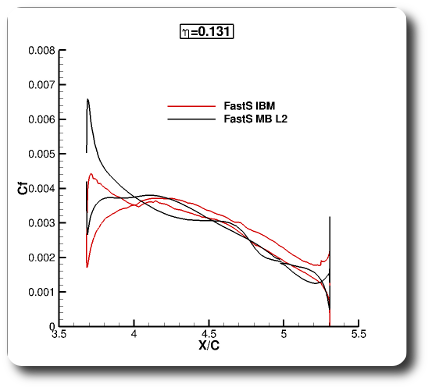

              Cf at 13% span.

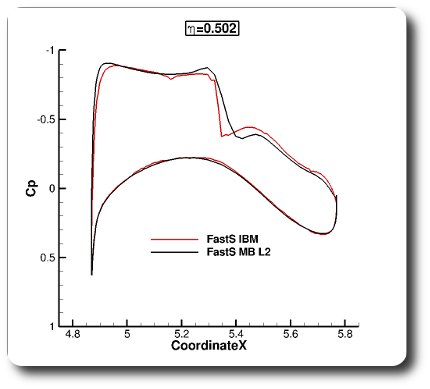

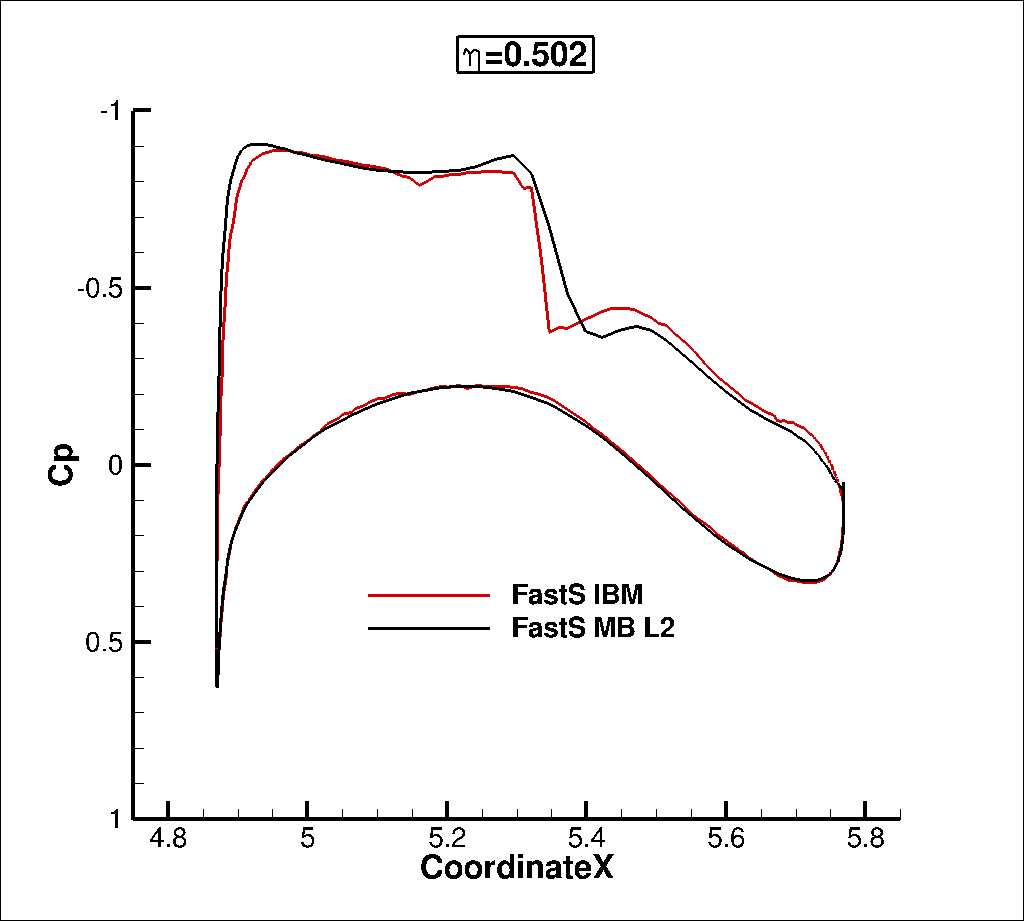

              Cp at 50% span.

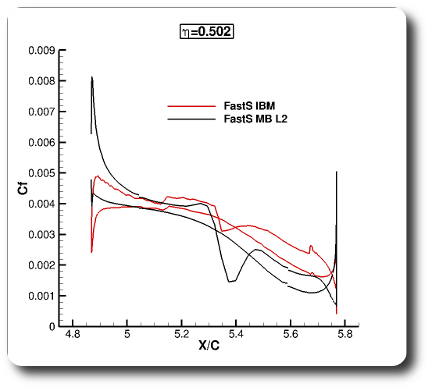

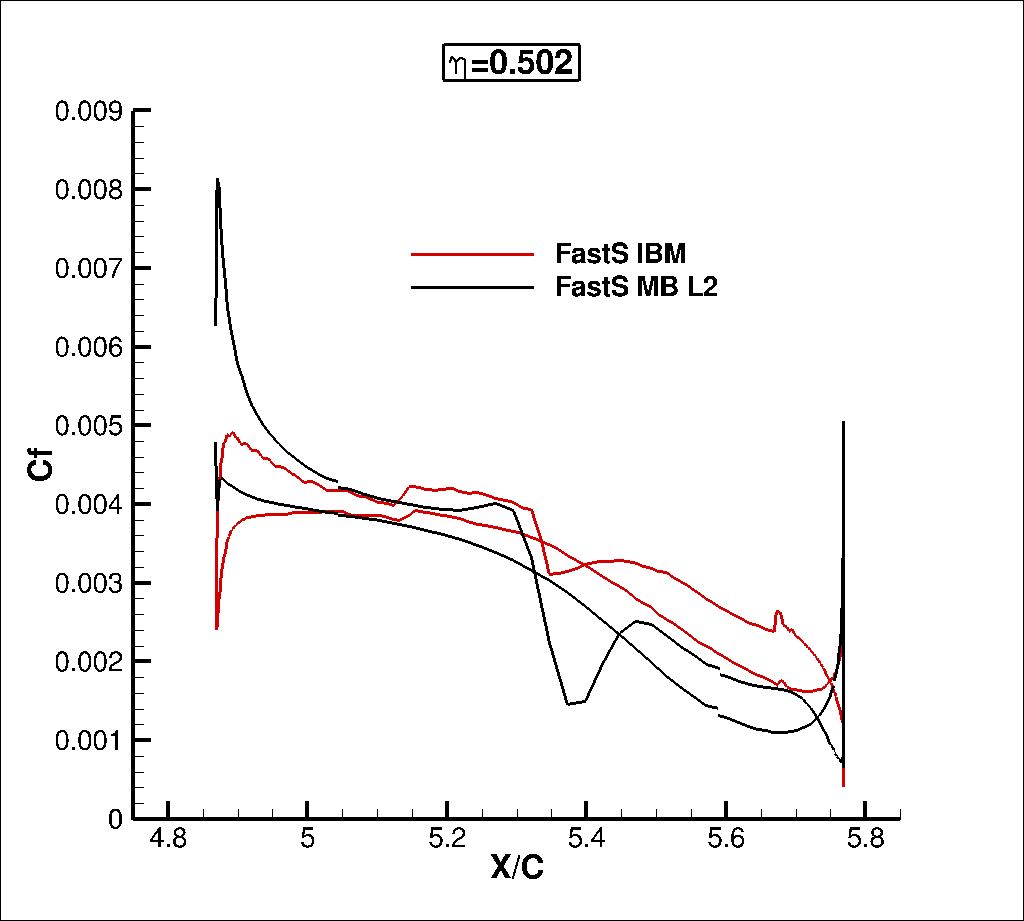

              Cf at 50% span.

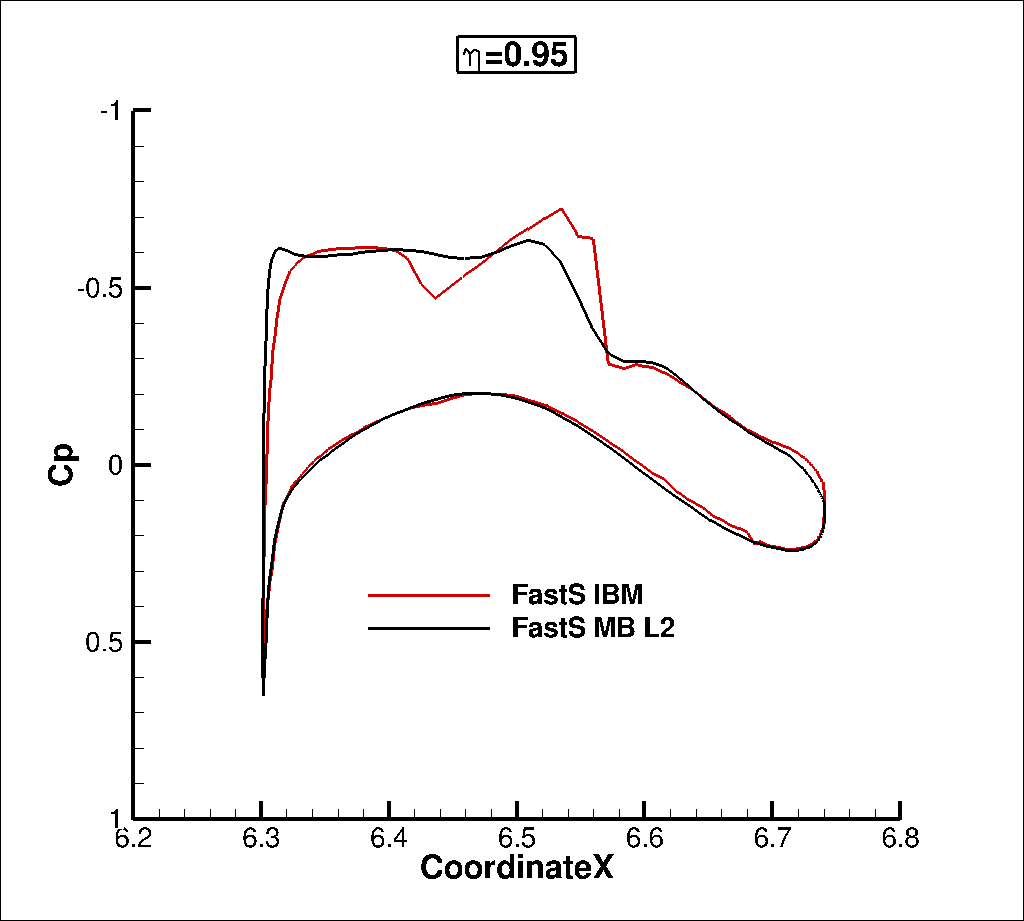

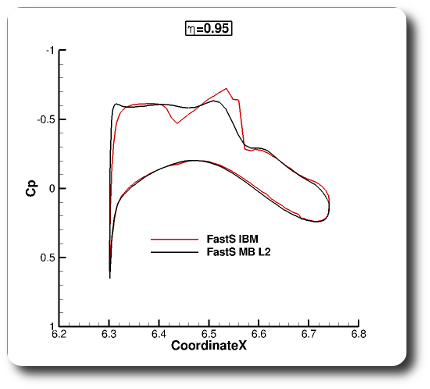

              Cp at 95% span.

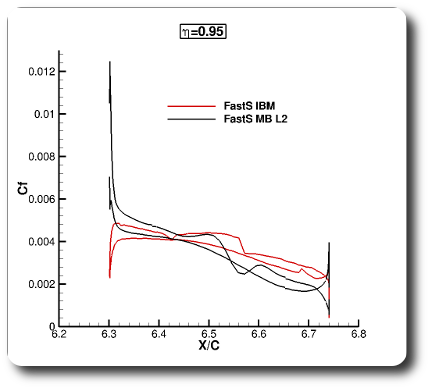

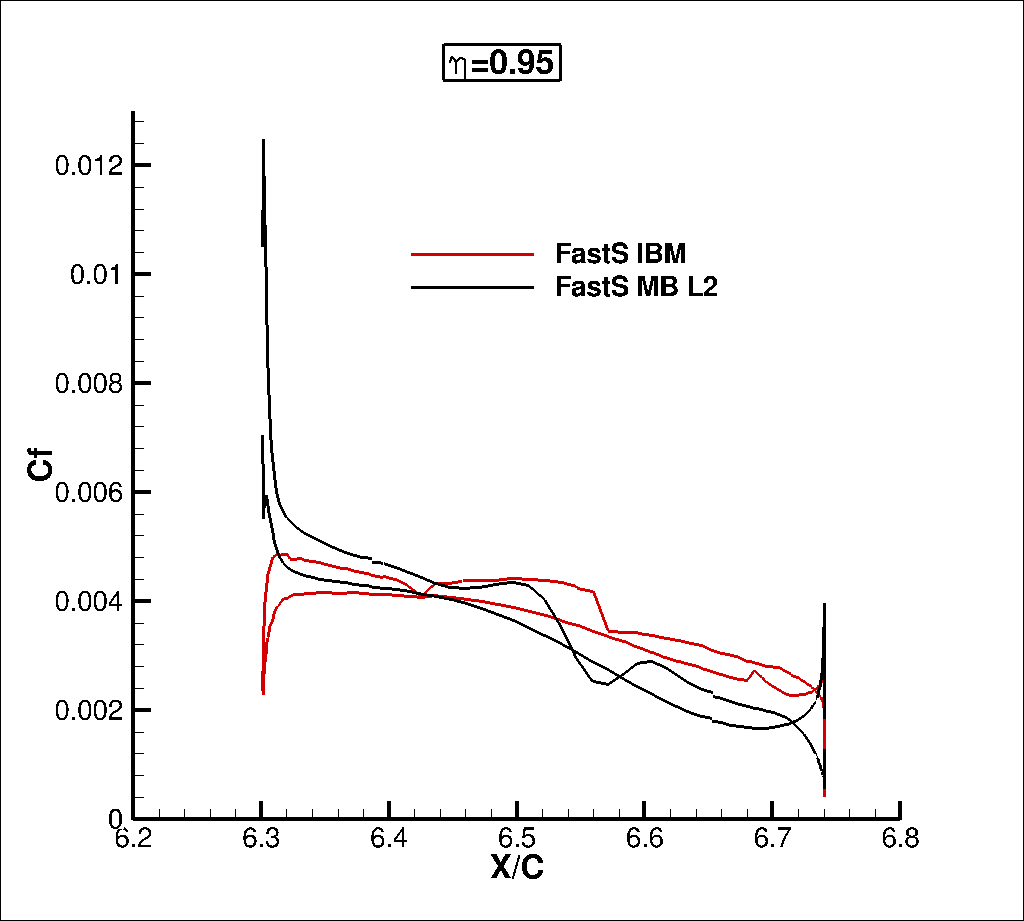

              Cf at 95% span.


Computation

Full IBM FastS: CPU time (32 MPI*8 OMP) for 5000 iterations : 480min.
